CP Pump
CP Pump
Designed for use where low flow or transfer duties in both domestic and industrial applications are required, these units are self priming and achieve suction lifts up to 8 metres on water.
Mono’s CP Range pumps provide an economic answer to many pumping duties. Simple design and construction provide extended pump life with minimal routine servicing.

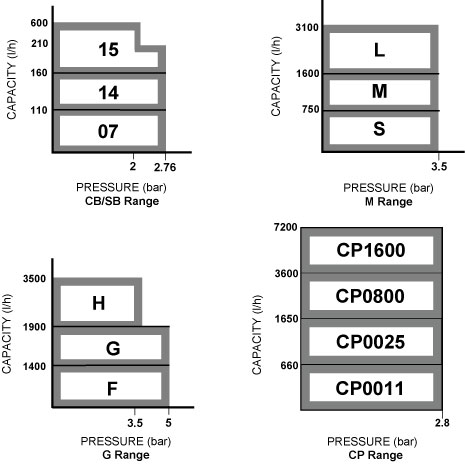

Capacity | Pressure | Temperature | |||
---|---|---|---|---|---|
m³/h | Up to 7.8 | bar | Up to 3 | °C | 0 to 100 |
gpm | Up to 28.6 | psi | Up to 43 | °F | 32 to 212 |
Applications
Dosing applications | Light creams |
Shampoo | Cosmetics |
Diesel/fuel oils | Water sampling |
Hydraulic/lubricating oils | Cellar drainage |
Septic tank/cesspit emptying | Garden sprinkler systems |
Water supply from wells or rivers |
Features & Benefits
- The progressing cavity pump principle ensures steady output pressure and non-pulsing flow with minimal slippage - a very useful feature when pumping heating oil to burner nozzles, for example
- Smooth action and resilient rubber stator ensure quiet running - ideal for light industrial and domestic installations
- Simple design and easily dismantled
- Feature an abrasion and chemical resistant stator for handling viscous liquids and random solids
- Available as cast iron, stainless steel or engineered co-polymer bodies
- High quality stainless steel rotating parts
