Epsilon Range
Epsilon Range
A range of technically engineered progressing cavity pumps, designed to give least whole life costs and reduced spares requirements. The bloc construction of the Epsilon range has reduced overall dimensions and incorporates Mono's unique Flexishaft® drive transmission, with a 10 year warranty.
The option of an inspection cover permits removal of rags when this is an issue and the Epsilon range has shared componentry with the popular Compact C Range, helping customers and stockists to reduce the inventory of replacement parts.

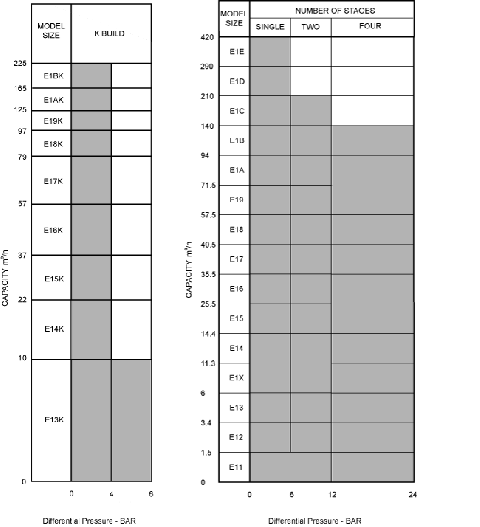

Capacity | Pressure | Temperature | |||
---|---|---|---|---|---|
m³/h | Up to 420 | bar | Up to 72 | °C | -10 up to 100 |
gpm | Up to 1,849 | psi | Up to 1050 | °F | 14 up to 212 |
Applications
Primary and secondary sludges | Domestic and industrial effluents |
Hydrated line slurry | Dewatered sludge cake |
Shear sensitive latex emulsion | Milk curds |
Sauces | Fruit juices |
Crude oil/condensate/produced water | Hydraulic oil |
Waste oil | Industrial chemicals and detergents |
Starch slurries | Coating clays |
Gypsum and silicate | Paper stocks |
Agricultural slurries | Mine de-watering |
Features & Benefits
- Available in cast iron or stainless steel, with a choice of rotor and stator materials. Other materials available on request for difficult applications, i.e. super duplex stainless steel
- High pressure/long haul pumping - eliminates the need for a series of pumps, when pumping over long distances or with high head requirements
- Inspection cover available for applications where rag content is a problem
- Gentle pumping action minimises shear and crush damage
- Flexishaft® drive shaft connection eliminates wearing components
- Available in standard geometry or extended pitch
- Can be installed vertically or horizontally
- Low running speeds - ideal for abrasive applications
